OPCOM Diagnostic Tool for Opel – OBD Scanner with PIC18F458 FTDI CAN BUS | Firmware V1.70 / V1.95 / V1.99

Simplify Opel diagnostics with the OPCOM OBD Scanner, designed for accurate fault code reading and clearing. Equipped with PIC18F458 + FTDI chip technology, this tool supports multiple firmware versions and offers reliable CAN BUS communication for Opel vehicles up to 2014.

⚡ Opel-Specific Coverage – Full OBD diagnostic support for Opel models up to 2014.
🔧 Fault Code Functions – Read and clear trouble codes with precision.
💻 Stable Performance – FTDI + PIC18F458 chipset for fast and reliable communication.
📡 Multiple Firmware Options – V1.70, V1.95, and V1.99 versions available.
🌍 English Language – Easy-to-use software interface.

Specifications:
Model: OPCOM Opel OBD Scanner

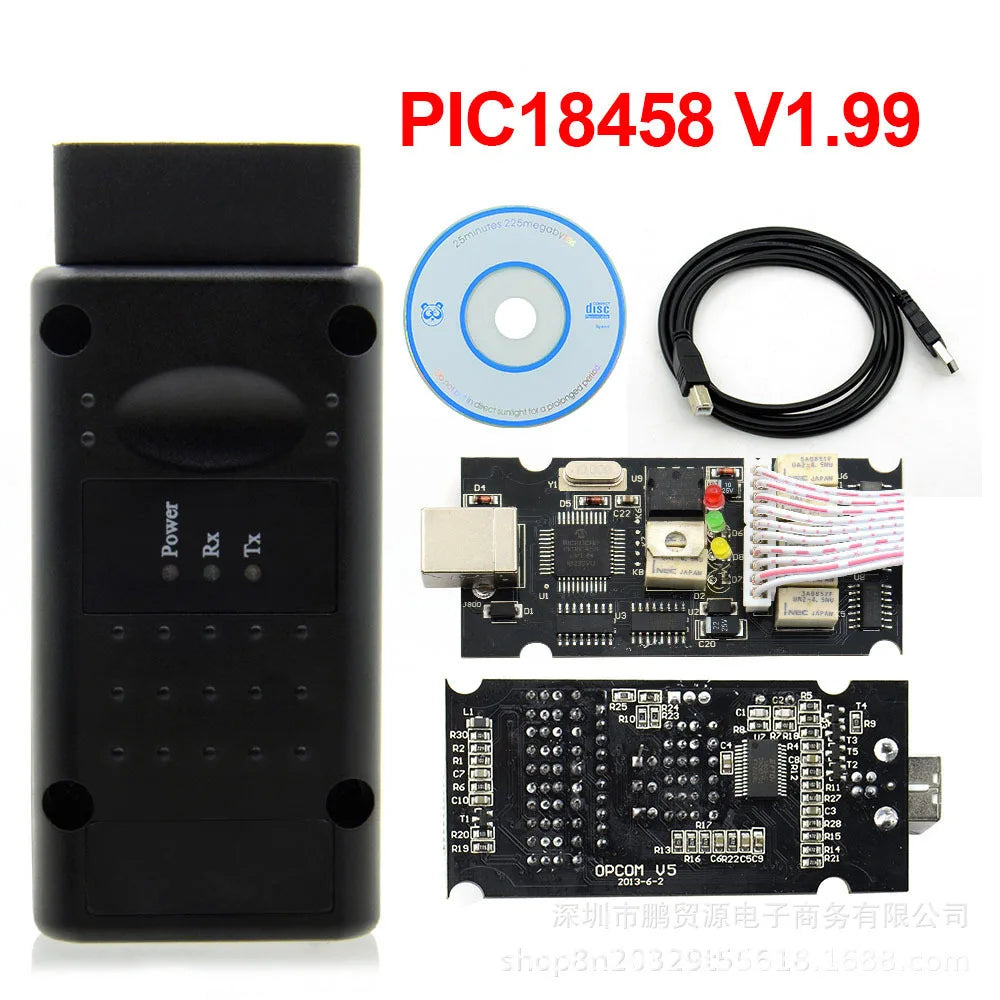

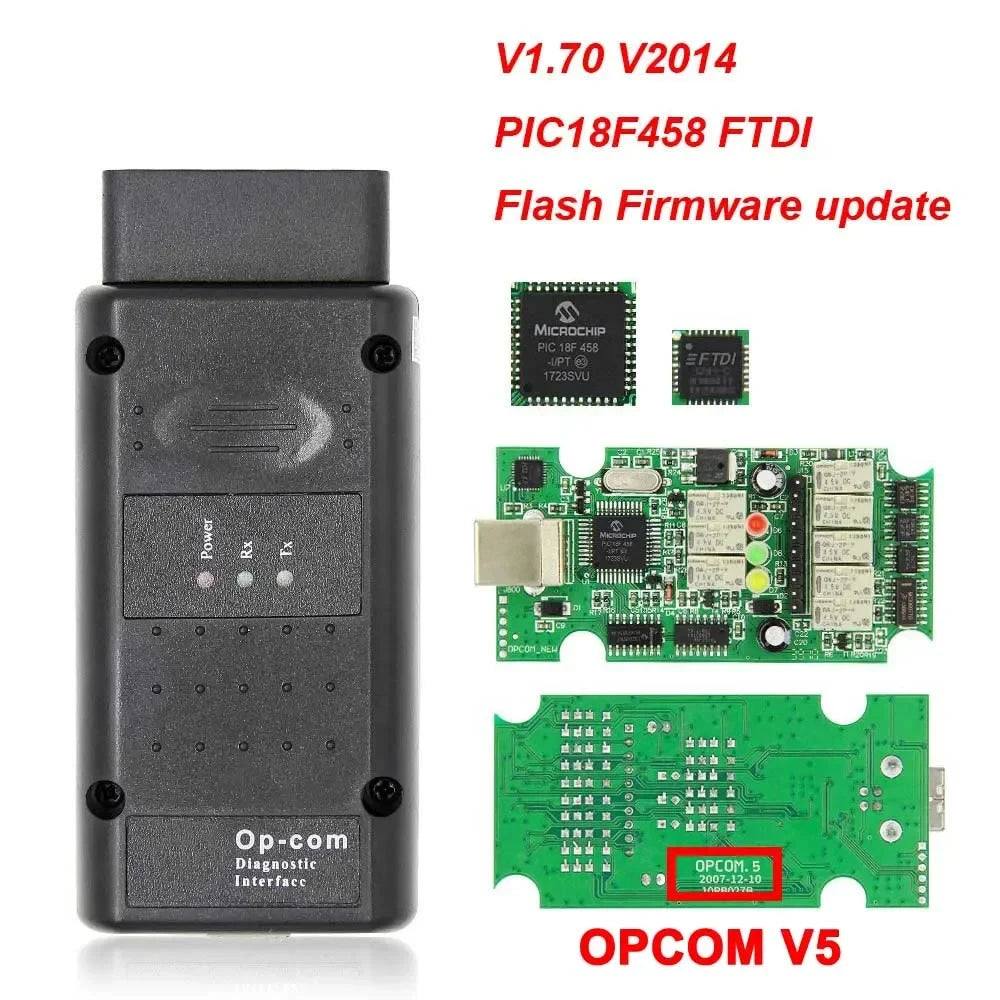

Firmware Versions: V1.70 / V1.95 (supports flash update) / V1.99 (non-updatable)
Software Version: 2014 release
Chipset: FTDI + PIC18F458
Compatibility: Opel vehicles (up to year 2014)
Language: English
System Support: Windows XP / 7 (32-bit recommended); Windows 10/11 requires digital signature disabled

✨ Ideal for Opel owners and technicians who need quick, reliable diagnostics.
Free Shipping Included 🚚

Firmware 2014V Software Function:

1. It covers almost all Opel cars, even new cars with CAN-BUS based diagnostic, such as for Vectra-C,for Astra-H,for Zafira-B.

2. The program lets you to read out and clear fault codes, shows you live data, lets you to perform output test.

3. The program supports many control units, like Engine, Automatic Transmission, ABS, Air-bag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, just to name a few examples.

4. Since Opel uses many pin in the OBD connector, the diagnostic interface works as a multiplexer, and selects the appropriate pin for communication.

PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)

5. Fault codes will be shown with all available information

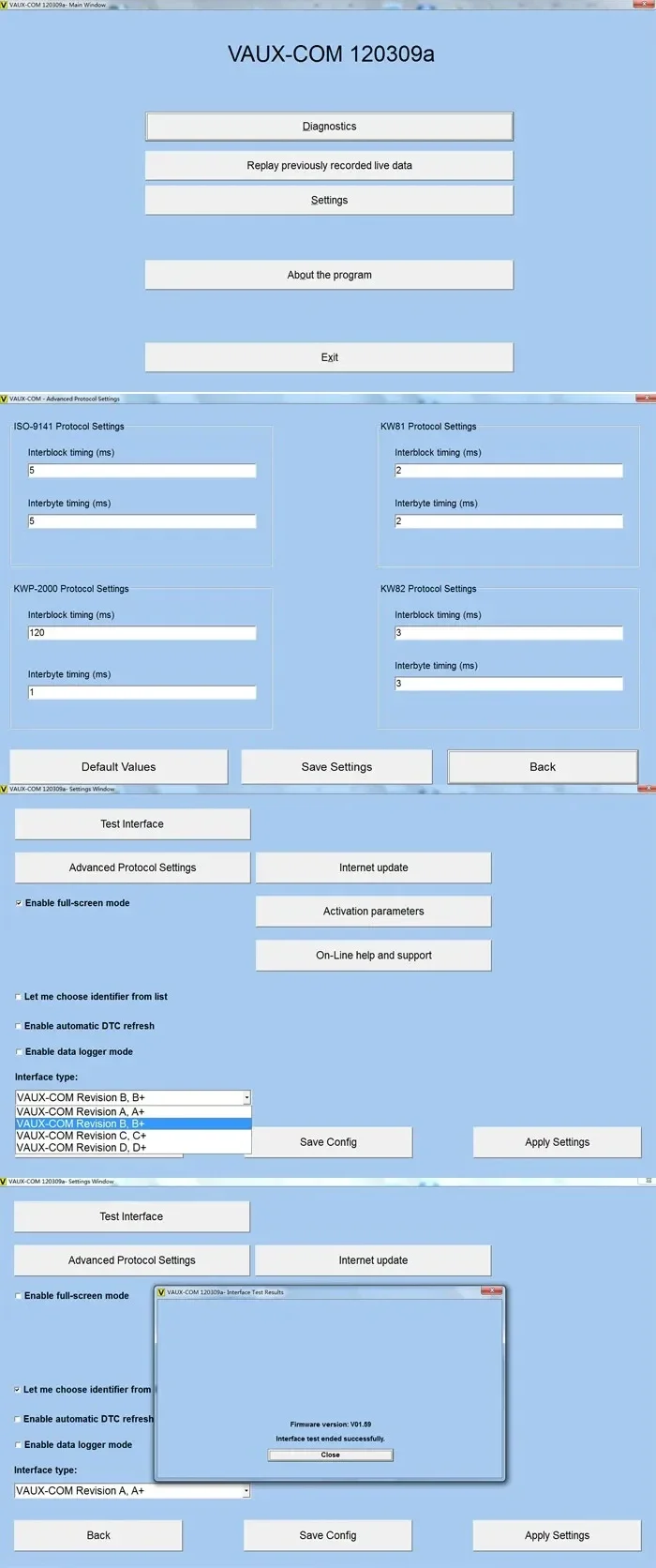

Attention for Latest Opcom Software VAUX-COM_120309a.exe:

1. If you run it on XP or Win7, please make sure you install dotnetfx35_SP1 system patch, or Opcom software can't perform well

2. When you install on Win7 and open software, please choose Run as administrator, and read the installation video on CD carefully

Please do not update this one online.

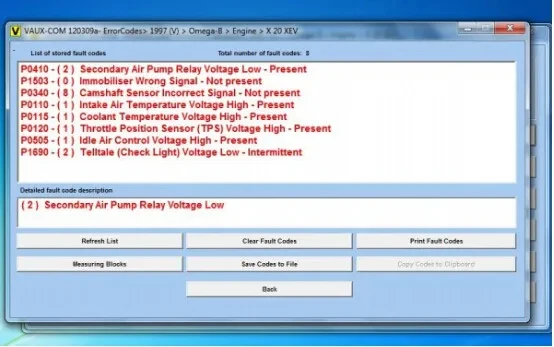

Full Fault Code Text Description:

1) Full status information (Present, Not present, Intermittent)

2) You can print out, save, or copy the fault codes to any other application. From the fault codes window, you can go directly to the measuring blocks window.

3) The program shows you measuring block information on many control module, you can choose anything from the list on your own.

4) The program is capable of showing 8 measuring block parameter simultaneously. The sample rate is depends mostly on the communication protocol. For example, older system, like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow, during communication, while newer Multec, or for Bosch units are faster (using KWP-2000), and the newest CAN based control units are very fast!

Function:

It covers almost for all Opel cars, even new cars with CAN-BUS based diagnostic, such as Vectra-C, Astra-H, Zafira-B.

The program lets you to read out and clear fault codes, shows you live data, lets you to perform output test.

The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, just to name a few examples.

Since for Opel uses many pin in the OBD connector, the diagnostic interface works as a multiplexer, and selects the appropriate pin for communication.

PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)

Fault codes will be shown with all available information:

Full Fault Code Text Descriptions:

1. Full status information (Present, Not present, Intermittent)

2. You can print out, save, or copy the fault codes to any other application.From the fault codes window, you can go directly to the measuring blocks window.

3. The program shows you measuring block information on many control module, you can choose anything from the list on your own.

4. The program is capable of showing 8 measuring block parameter simultaneously. The sample rate is depends mostly on the communication protocol. For example, older system, like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow, during communication, while newer Multec, or units are faster (using KWP-2000), and the newest CAN based control units are very fast!

5. You Can Also Run Output Tests On Many Controllers:

PIN6-PIN14

PIN3-PIN11

PIN1

HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps

MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps

SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps

OPCOM 2012 diagnostic tool for Opel cars covers almost all Opel cars, even new cars with CAN-BUS based diagnostic, such as for Vectra-C,for Astra-H,for Zafira-B. It lets you read and clear fault codes, support many control units

Language: English

Car Maker: Support Opel cars until 2014

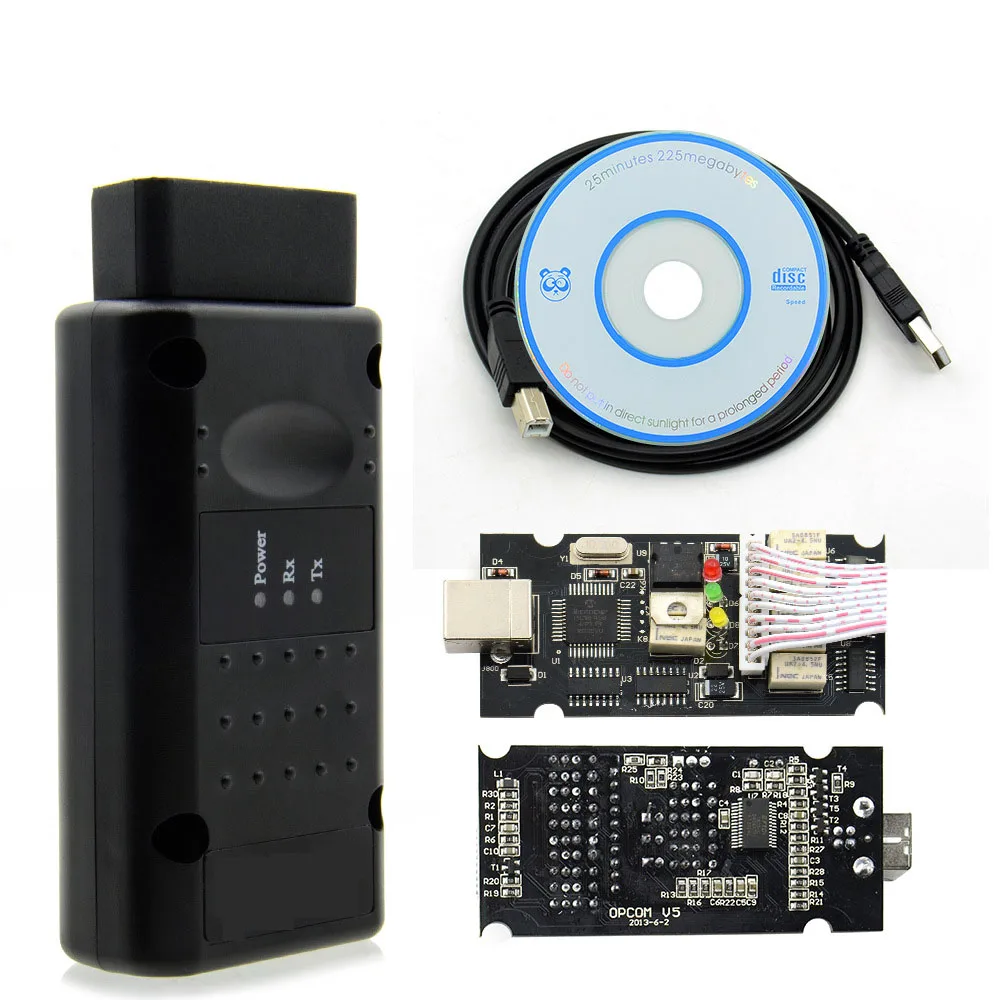

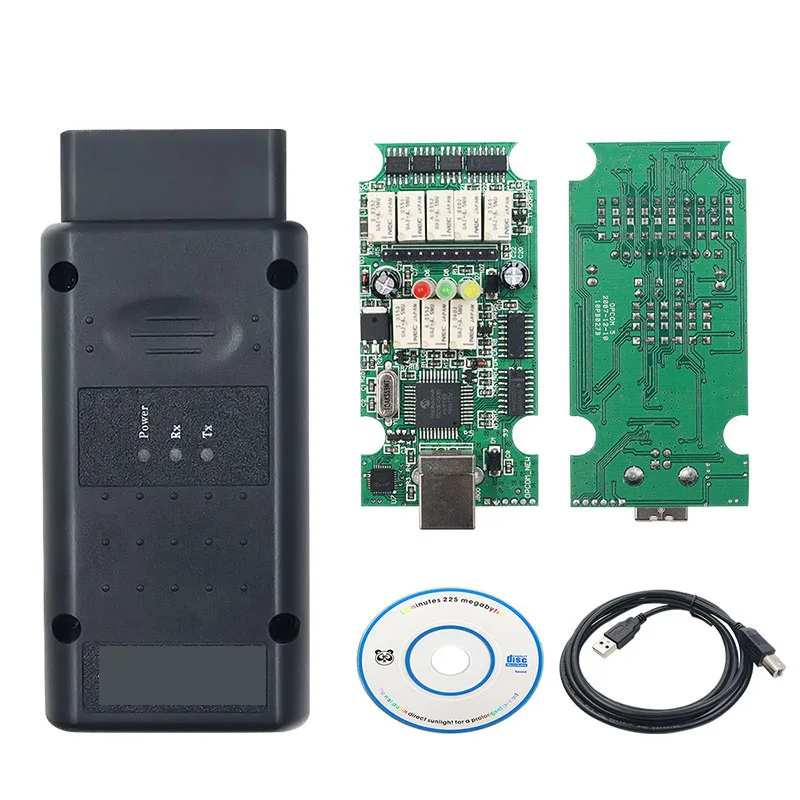

Package list:

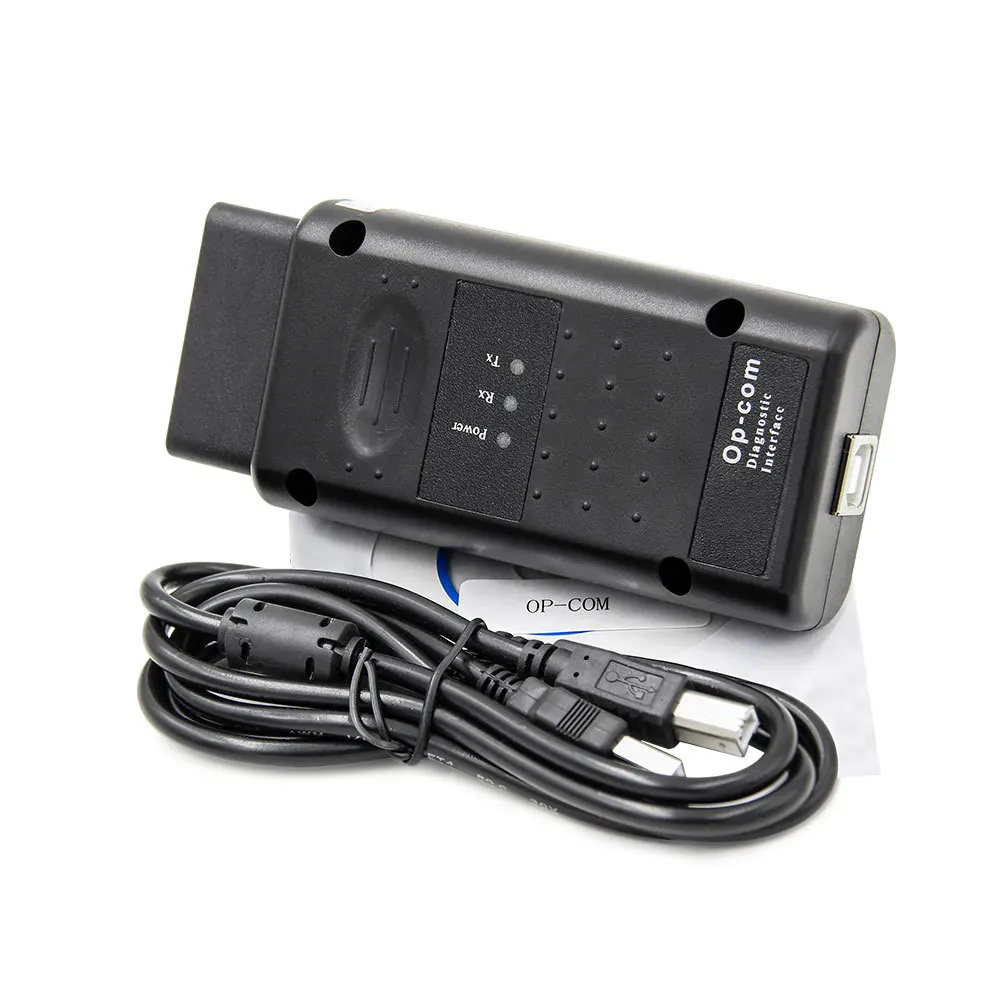

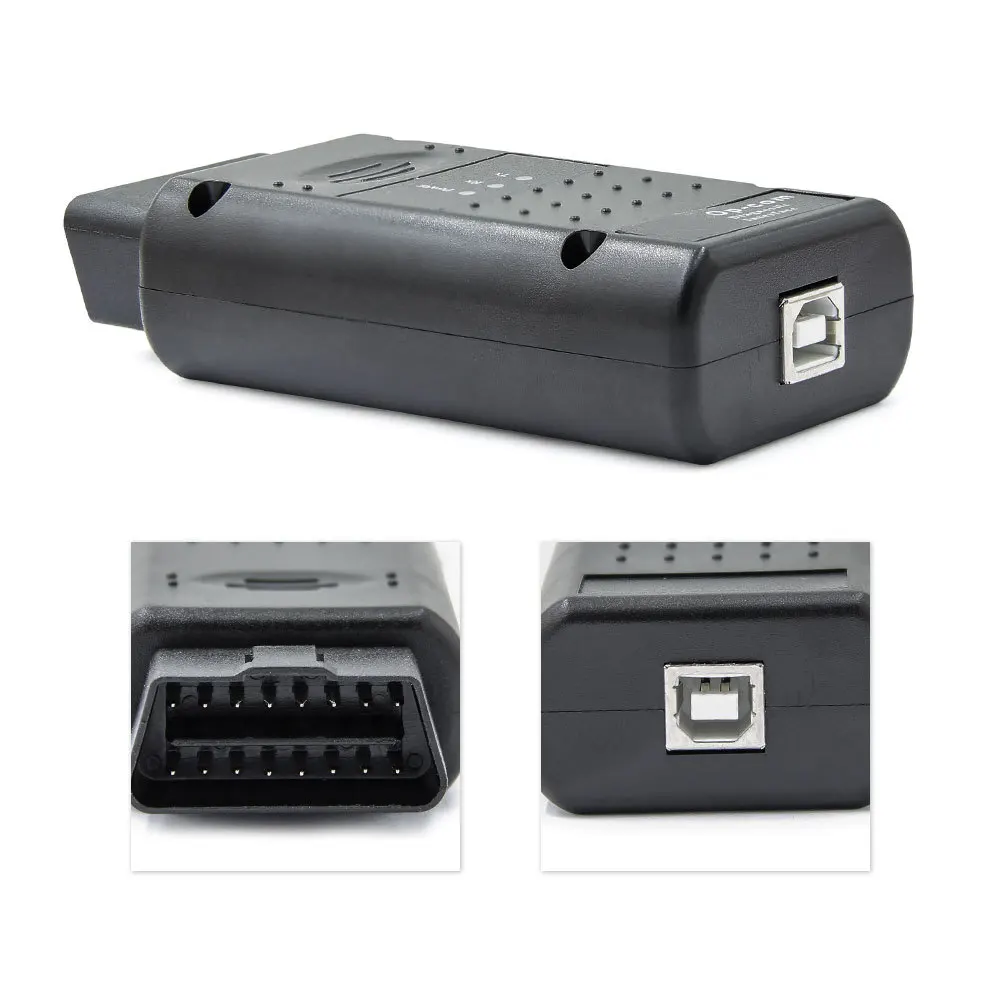

1pc x OP COM Interface

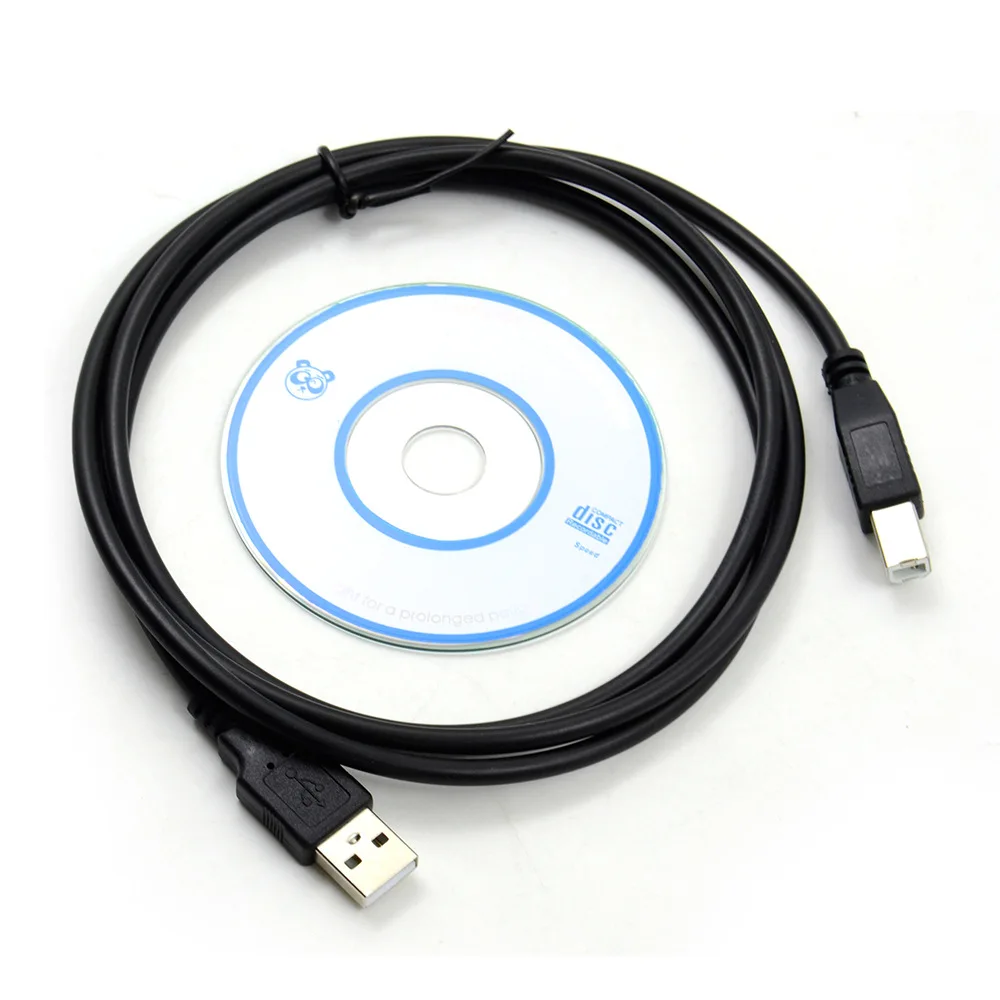

1pc x USB Cable

1pc x Software and Drivers CD

FAQ:

Q: Does this product has any other language other than English?

A: This product have only English version.

Q:What we can do with this device?

A:1. You will get a feedback on the state of the activated output. This will helps you to find the failed. Components more easily. With OP-COM, you can learn keys to im-mo and remote keys to the central door locking.

2. You can also reset, and program the following im-mo related items: ECM, BCM, IPC.

3. You will need the vehicle security code, which can be found on the CAR-PASS.

4. You can also reset, and program the Service interval reminder for Astra-G/Zafira/Corsa-C/Meriva

5. You can code SAB6, and SAB8 air-bags with the software.

6. The diagnostic inteface is USB port based, so there will be NO COMPATIBILITY ISSUES, with serial to USB converters.

7. The speed of the communication over the USB-BUS is enough to handle the awesome speed of the High-Speed CAN-BUS systems, which is currently 500kbps. This is the main reason, why only the USB port based interface is available for CAN-BUS.

8. Compared to the TECH2, which is the dealers tool (with a 32 MB Card+CANdi interface), the price of OP-COM is quite affordable.
